Product Details
The “Blank + Material Kit” includes all the materials required to laminate, filler coat and fin system installation parts required to complete your own board. The hand picked selection of materials is the same you will find on any leading board builder! Please refer to Shaping/Glassing/Sanding Tool Kits Sections for Tools required to build your own board.

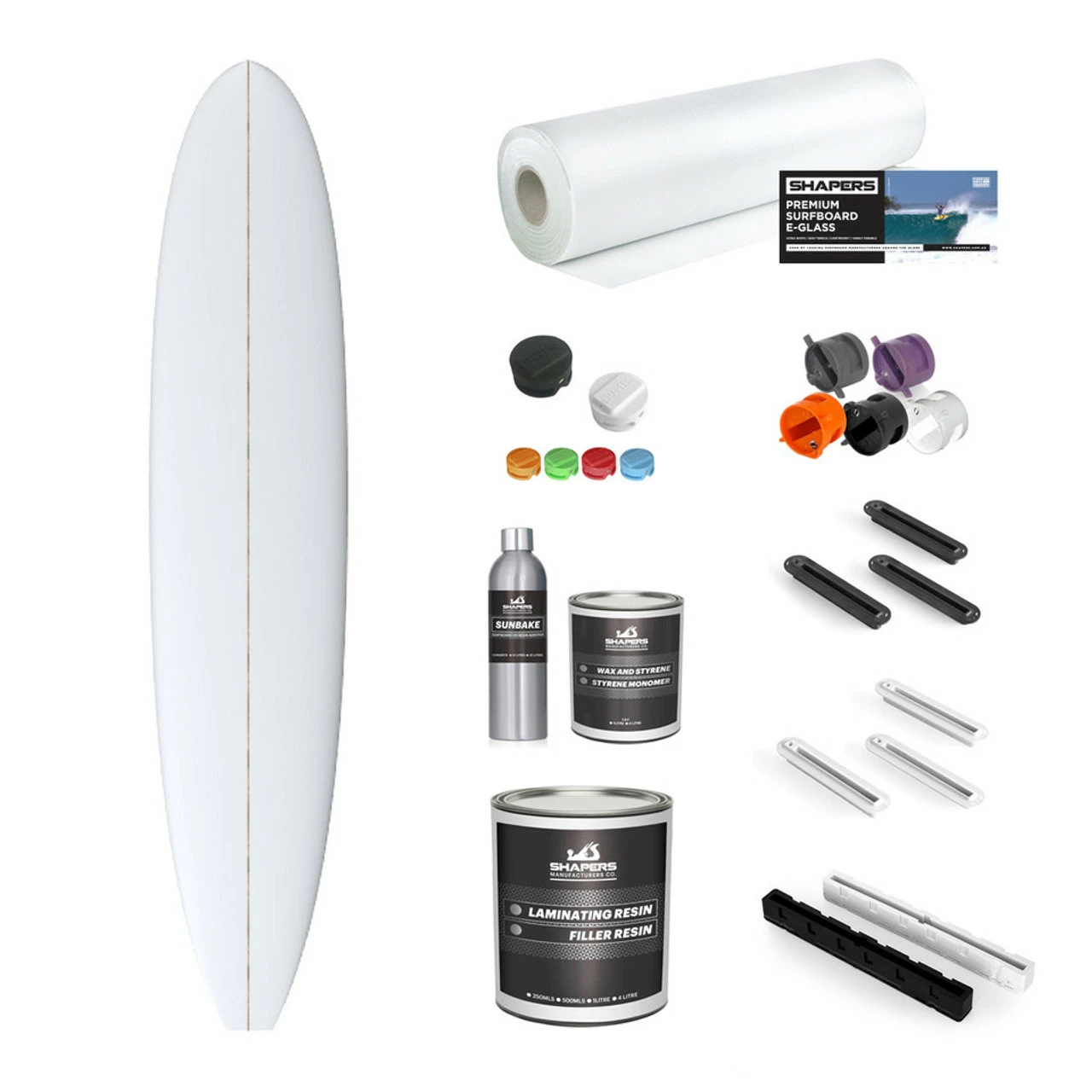

The Longboard Blank and Material Kit includes:
- Longboard Model. Please select Size of shape.
- 6Oz Fibreglass (our SEG Series). You will receive enough fibreglass to laminate 2 x 6Oz layers on the deck and 1 layer of 6Oz on the bottom.
- 4L Surfboard Laminating Resin.
- 5L Sunbake UV Additive.
- 150ml Wax and Styrene. For converting Laminating Resin into Filler Resin.
- MEKP Catalyst.
- Leash Plug (Shapers Glassing Leash Plug)
- Fin System Options Include:
– Fin Box.
– Dual Tab Plugs.
– Single Tab Boxes.
KIT NOTES:

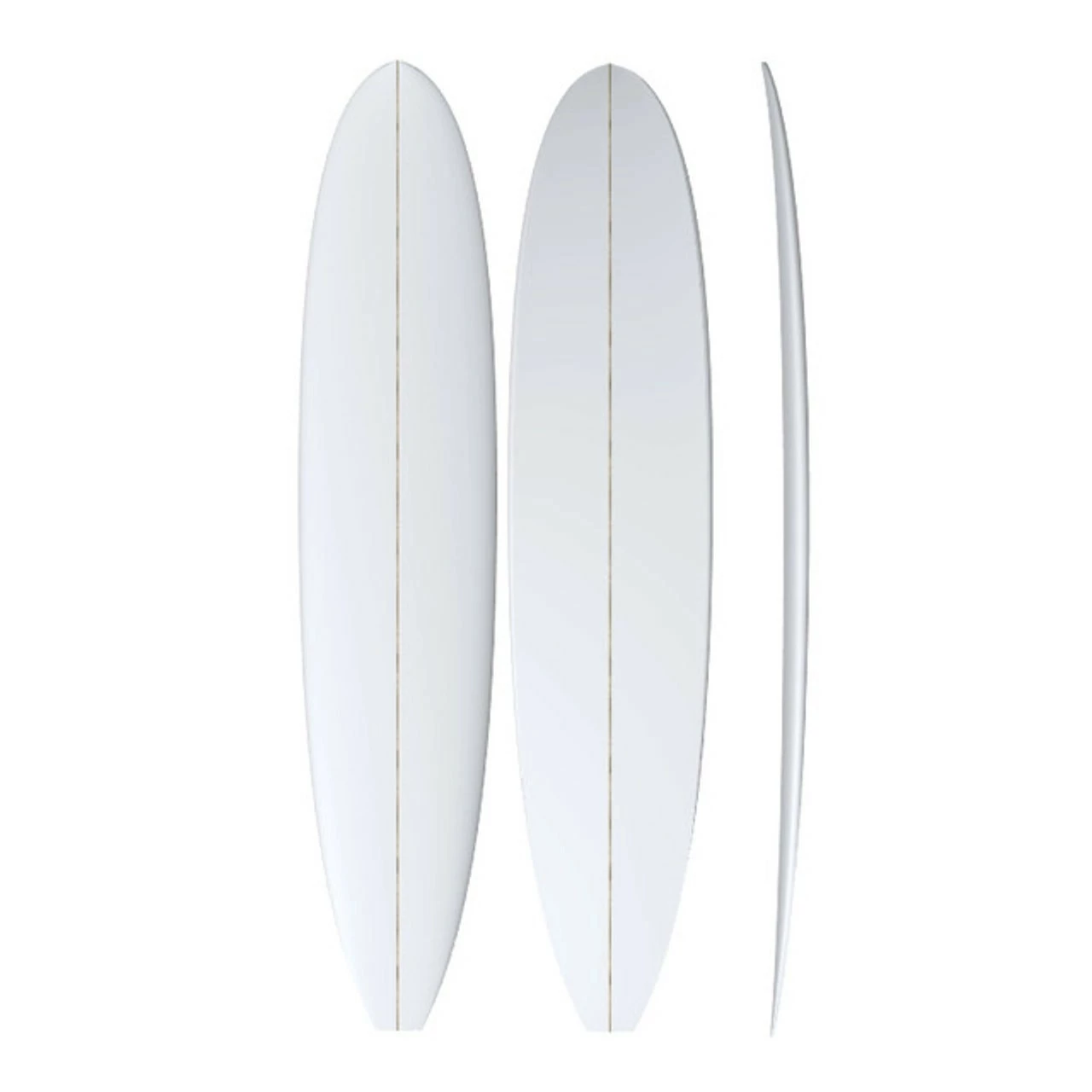

MACHINE SHAPE – LOG
This template is a modern performance longboard design. The nose and tail curve has more lift the a traditional longboard allowing the board to surf a lot like a shortboard.
WAX & STYRENE
Is used with Surfboard Laminate Resin to make Filler Resin Coat (Final Coat Prior Sanding). A ration of 2.5% is required of Wax and Stryene to Laminating Resin.
SUNBAKE
Shapers SunBake UV Solar Additive is and optional curing agent that is to be used with Laminating or Filler Resin and allows for UV catalysing (hardening) of the resin, that does not require MEKP Catalyst. Specifically formulated for stronger, brighter surfboard laminates without curing time constraints.
Please ensure when repairing or laminating a surfboard you keep the resin AWAY FROM DIRECT SUN LIGHT as this will cause rapid hardening of resin.
NOTES FOR USE:
Please beware resin will cure within minutes when exposed to sunlight.
Example of curing times by sunlight:
Bright Sun: Gel 15 Seconds / Full cure 5 minutes.
Partial Sun: Gel 30 Seconds / Full cure 6-8 minutes. Bright Sun: Gel 45-60 Seconds / Full cure 10 minutes. –
Work only indoor or isolated area out of sunlight. – Always test small sample of resin in sun before use. – If repair depth is over 1/4”, you will need to add MEKP to the resin at 1% to catalyse. MEKP Catalyst (Methyl ethyl ketone peroxide). Curing time with MEKP for a depth of 1/4” should curve within 15-30.
Fin System Options
Fin plugs do not come with fins, only fins are provide with the Glass On option.
As part of Shapers purchase policy that Shapers Manufacturers Co is not responsible for loss or damage to the goods and is the responsibility of the recipient, as Shapers does not control the services of the courier companies. Therefore, we encourage the purchase of freight insurance for customers peace of mind and confidence. The fee will cover the total value of the goods purchased.
All machine shapes are made to order, please allow for 5-10 working days for the board to be cut.
| Pre Shaped Blank - Longboard Sizes | 9'0 3/4 x 22 3/4" x 2 3/4", 9'2 x 22 3/4" x 2 3/4", 9'4 x 22 3/4" x 2 3/4", 9'6 x 23" x 3", Custom Size (Please enter below) |
|---|---|
| Kit Front Left Plug | Single Tab Box – Black 3/4" Box, Single Tab Box – White 3/4" Box, Dual Tab Fin Plug Rail Pair : Grey |
| UPC | |
| SKU | 21-MSMK-LONG |
| LONGBOARD FINS | None, 8" Classic Series Box Fin – Mist, 8" Classic Series Box Fin – Seafoam, 8" Classic Series Box Fin – Black, 8" Classic Series Box Fin – Translucent Blue, 8" Classic Series Box Fin – White Nude, 9" Classic Series Box Fin – Mist, 9" Classic Series Box Fin – Seafoam, 9" Classic Series Box Fin – Black, 9" Classic Series Box Fin – Translucent Blue, 10" Classic Series Box Fin – Mist, 10" Classic Series Box Fin – Seafoam, 10" Classic Series Box Fin – Black, 10" Classic Series Box Fin – Translucent Blue, 10" Classic Series Box Fin – White Nude, 8" Flow Series Box Fin – Mist, 8" Flow Series Box Fin – Seafoam, 8" Flow Series Box Fin – Translucent Black, 8" Flow Series Box Fin – Translucent Blue, 8" Flow Series Box Fin – White Clear, 9" Flow Series Box Fin – Mist, 9" Flow Series Box Fin – Seafoam, 9" Flow Series Box Fin – Translucent Black, 9" Flow Series Box Fin – Translucent Blue, 9" Flow Series Box Fin – White Clear, 10" Flow Series Box Fin – Mist, 10" Flow Series Box Fin – Seafoam, 10" Flow Series Box Fin – Translucent Black, 10" Flow Series Box Fin – Translucent Blue, 10" Flow Series Box Fin – White Clear |
| Leash | None, 6ft Ultra-Lite Performance Leash – Black, 6ft Ultra-Lite Performance Leash – Black & White, 6ft Ultra-Lite Comp Leash – Black White, 6ft Ultra-Lite Comp Leash – Black, 7ft Regular Leash – Black |
| Tail Pad | None, Performance I Tailpad : Black, Performance I Tailpad : Ocean, Performance I Tailpad : Pink |
| Shipping Insurance | None, YES |
| Kit Centre/Rear Plug | Single Tab Box – Black Center 1/2" Box, Single Tab Box – White Center 1/2" Box, Dual Tab Fin Plug Center Pair : Grey |
| Kit Front Right Plug | Single Tab Box – Black 3/4" Box, Single Tab Box – White 3/4" Box, Dual Tab Fin Plug Rail Pair : Grey |
| Kit Cloth Deck Layer One | 4OZ 27" Shapers Surfboard Fibreglass – Per Meter Length, 4OZ 30" Shapers Surfboard Fibreglass – Per Meter Length, 6OZ 30" Shapers Surfboard Fibreglass – Per Meter Length |
| Deck Plug | Deck Plugs Small – White, Deck Plugs Small – Black |
| Sunbake UV Catalyst | Sunbake Additive – Powder 5L Convertor |
| MEKP Catalyst | MEKP Catalyst PE Hardener 50mls |
| Wax & Styrene | Wax In Styrene 125mls |
| Resin | Polyester Surfboard Laminating Resin 4L |
| Kit Cloth Bottom Layer | 4OZ 27" Shapers Surfboard Fibreglass – Per Meter Length, 4OZ 30" Shapers Surfboard Fibreglass – Per Meter Length, 6OZ 30" Shapers Surfboard Fibreglass – Per Meter Length |
| Kit Cloth Deck Layer Two | 4OZ 27" Shapers Surfboard Fibreglass – Per Meter Length, 4OZ 30" Shapers Surfboard Fibreglass – Per Meter Length, 6OZ 30" Shapers Surfboard Fibreglass – Per Meter Length |
| Availability | Please allow 5-10 working days for machine shapes. |
